QHL 12
Mã sản phẩmqhl-12
Giá:Liên hệ
Excellent heat radiation, optical and electrical ability.
Die-casting Aluminum body with power-coating and anticorrosion treatment Diffuser with 4.00mm/5.00mm super white toughened glass
Humanized design concept, easy to install and maintain
Description
Luminaire available in 3 sizes: BML-95A,BML-95B,BML-95C Body made of die-cast aluminium
Polyester powder coating. Any colour available
Colour temperature: 3000K -6500K
High recyclability rate

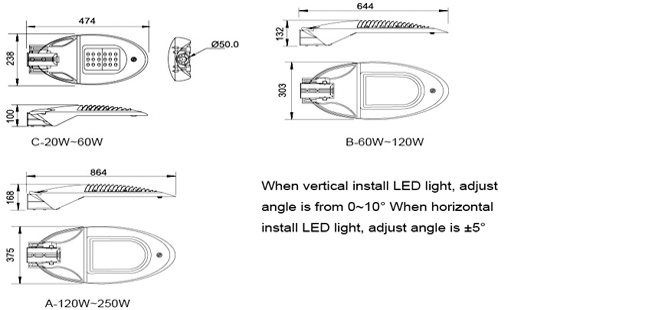

Product Dimension
Main Characteristics Luminaire | |
Size: | A-864X375X168mm B-644X303X132mm C-474X238X100mm |
LED Source: | CREE or PHILIP |
Body & Top Cover: | High Pressure Die Casting Aluminum |
Color Rengering Index: | Ra>75 |
Optical unit: | High efficiency performance alum |
Diffuser: | 4/5mm thinckness ultra-thin glass |
Connection to column: | 48/60/76mm; With dregee adjustable |
Power Factor: | >0.95 |
Classification: | IP66 |
Impact Resistance: | Ik09 |
Electrical Class: | Class ll |
Drive Current: | 350/700mA |
Main Characteristics Luminaire
BML-95A / B / C
Model | IP RATE |
POWER (W) |
EFFICIENCY (LM/W) | ||||
L (mm) | W (mm) | H (mm) | |||||
BML-95C | 474 | 238 | 100 | IP66 | 20-60W | 120-130 | |
BML-95B | 644 | 303 | 132 | IP66 | 40 | 120-130 | |
BML-95A | 864 | 375 | 168 | IP66 | 50 | 120-130 | |
